Custom RF, Optical & Microelectronics Solutions

Helping innovative OEMs win the race to market.

Design - NPI - Global Manufacturing

Comprehensive Services throughout your Product’s life cycle.

Technology: Chip to Module to System

Customized Implementation. Integrated Solutions.

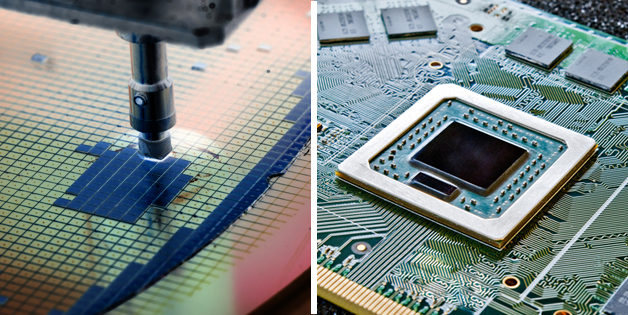

Wafer to Module Prototype in 30 hrs

Sanmina worked around the clock to separate chips from a wafer,
and packaged advanced copper pillar flip chips with ULK layers.

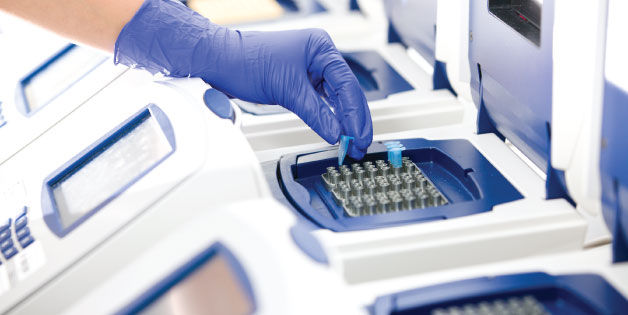

From Research Lab to Product

Sanmina transformed an innovative customer
chemical process into a marketable product.

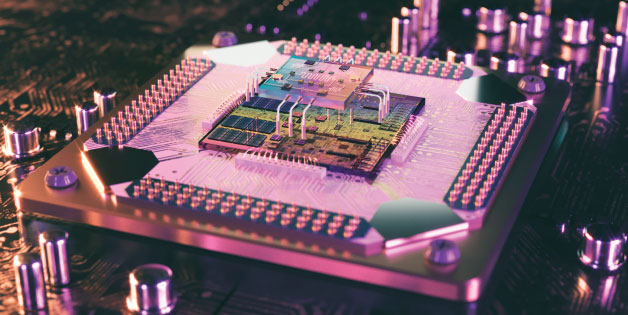

Cryogenic Processes Enable Quantum Computer

Sanmina developed unique microelectronic and
optical manufacturing processes for cryogenic products.

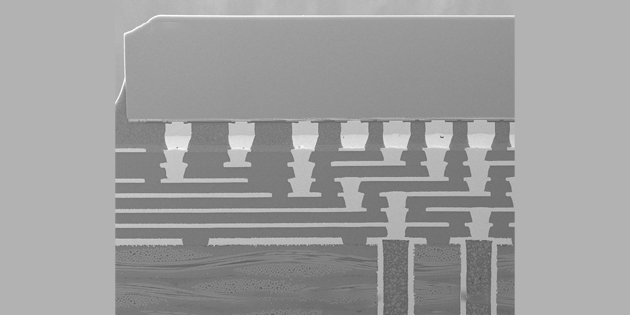

Process Expertise Accelerates Time to Market

A large OEM trusted Sanmina to develop new manufacturing processes for
their state-of-the-art “ultra low k copper pillar flip chip die”.



Custom RF, Optical & Microelectronics Solutions

For high technology OEMs who require innovative RF, optical and microelectronic solutions. Sanmina provides integrated design and manufacturing services at the chip, module and system level. Our integrated solutions, comprehensive technology access and product lifecycle services accelerate time to market and simplify supply chain management.

Integrated Design and Manufacturing Services

Integrated, co-located design and manufacturing teams efficiently realize industrialized, market-ready solutions.

Comprehensive Services

Customers reduce the management of multiple suppliers and accelerate time to market by working with one partner who provides access to expertise at chip, module and system level in a range of technologies including RF, optical and microelectronics as well as PCB, backplanes, cables, enclosures, precision machining, PCBA and systems.

Product Lifecycle Services

Product lifecycle services including design, prototyping, NPI, volume manufacturing, direct order fulfillment, repair and end-of-life services ensure that supply chain management is simplified, product knowledge is retained in one organization and the benefits of outsourcing are maximized.

Faster To Market. Flexible. Global Scale.

Customers benefit from Sanmina’s global footprint providing access to markets in different geographies and the flexibility to relocate or duplicate manufacturing as business needs evolve. Our RF, optical and microelectronics footprint includes design centers in North America and manufacturing locations in North America and Asia. We also have PCB, backplane, cables, enclosure, PCBA and systems design centers in North America, Europe and Asia and a global network of electronic manufacturing facilities in 22 countries worldwide. The quality management system used in our manufacturing facilities is developed centrally, deployed globally and audited independently. One cloud based IT system supports process standardization in all facilities worldwide.

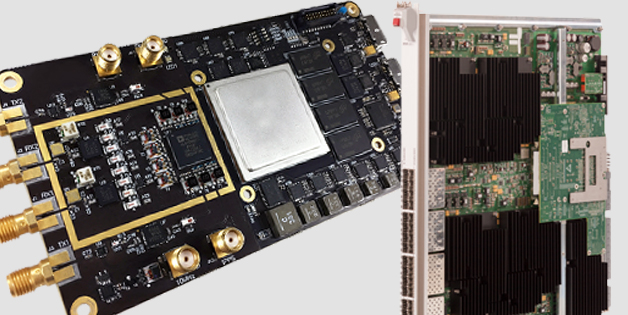

RF Microwave & Microelectronics

Learn More

Optical

Learn More

Product Design & Development

Learn More
